PS-PANEL backlit LED panel, power and colour selectable

PS-PANEL is a slim 27 mm backlit LED panel for 600 x 600 and 1200 x 600 exposed ceiling grids. Output and colour temperature are set on site, so one product covers offices, classrooms and corridors with fewer stock codes.

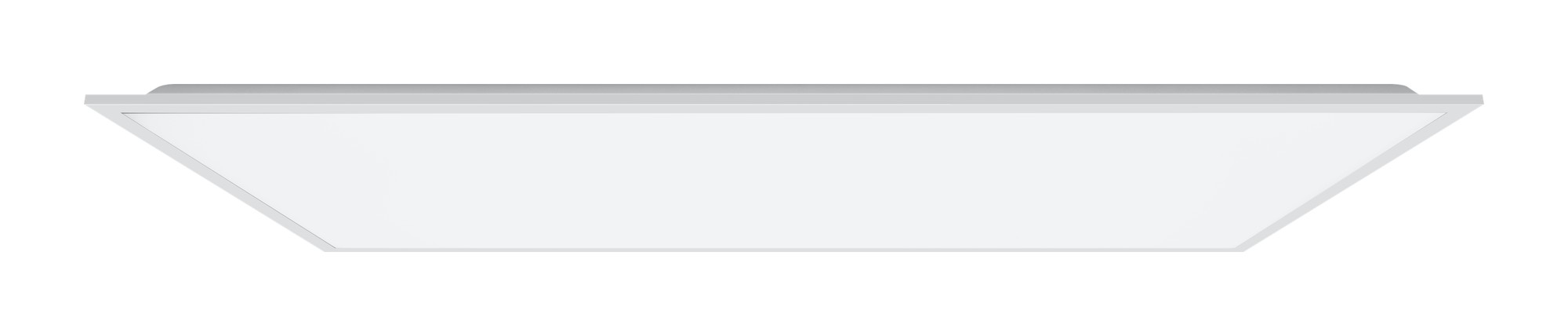

595 x 595 or 1195 x 595 mm, only 27 mm deep
Up to 5,000 lm; 125 lm/W on 600 x 600
Two output settings on every model
Colour change 3000K, 4000K, 5000K or 6000K
UGR <19, CRI >80, TPa rated diffuser
Fixed output or digital dimmable versions

125 lm/W

Efficacy

UGR <19

Low glare

4 CCTs

Colour change

5 Years

Warranty

Features

Made for offices and classrooms

Open plan offices, meeting rooms, classrooms and corridors need comfortable, glare controlled light. PS-PANEL drops into standard 15 or 24 mm exposed grids, and its backlit UGR <19 diffuser keeps desks and screens free of harsh reflections.

Set on site

Choose the output and colour temperature on the fitting, so one code covers different rooms and lux levels.

Visual comfort

Backlit design with a TPa rated diffuser. UGR 16.5 / 17.1 (600 x 600) and 16.3 / 16.1 (1200 x 600).

Efficient

125 lm/W for 600 x 600 and 116 lm/W for 1200 x 600, cutting energy against fluorescent modular fittings.

Grid ready

Recessed fitting for 15 or 24 mm exposed T grids. Cut-out 585 x 585 mm or 1185 x 585 mm.

Emergency option

A standard or self-test emergency pack can be added for emergency lighting.

Long life

Rated L70 / B50 at 100,000 hours at 25°C ambient, for -20°C to +30°C.

Specification

Key specification

Input voltage	220 to 240 V AC, 50/60 Hz

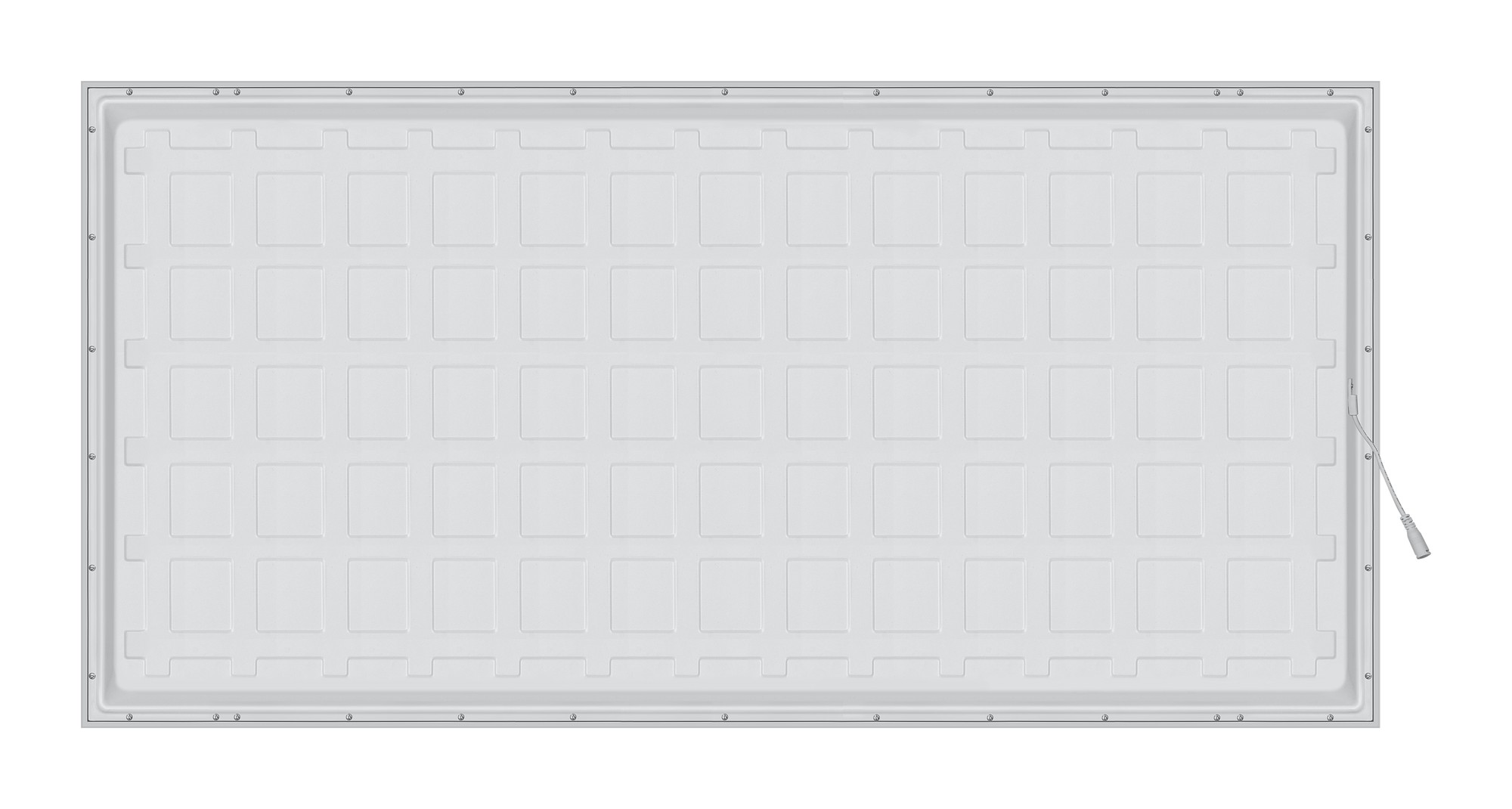

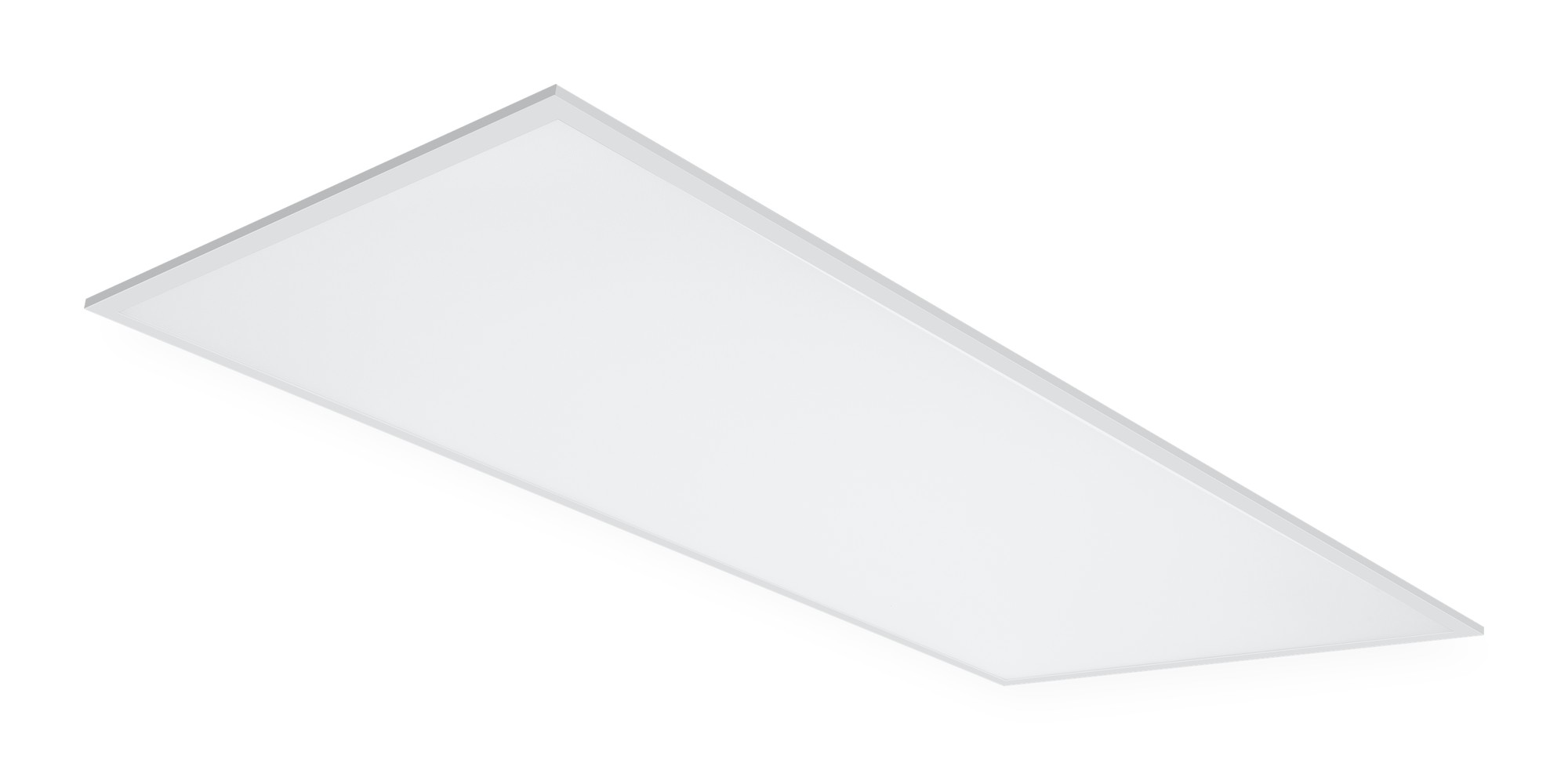

Sizes	595 x 595 x 27 mm; 1195 x 595 mm
Cut-out	585 x 585 mm; 1185 x 585 mm
Luminous flux	2,800 / 3,500 lm (600 x 600); 4,000 / 5,000 lm (1200 x 600)
Power	25 / 28 W (600 x 600); 41 / 43 W (1200 x 600)
Efficacy	125 lm/W (600 x 600); 116 lm/W (1200 x 600)
Colour temperature	4000K, or selectable 3000K / 4000K / 5000K / 6000K
CRI / glare	Ra >80 / UGR <19
Driver	Fixed output; digital dimmable (600 x 600 colour change)
IP / IK rating	IP20 / IK02
Diffuser	TPa rated
Operating temperature	-20°C to +30°C
Lifetime	L70 / B50, 100,000 h
Weight	3.2 kg (1200 x 600)
Mounting	Recessed in 15 or 24 mm exposed T grid
Emergency	Standard or self-test pack (accessory)
Warranty	5 years

Applications

Where it is used

Offices and meeting rooms
Schools and colleges
Healthcare corridors and waiting areas
Retail back of house

Options and accessories

Standard emergency pack
Self-test emergency pack
Digital dimmable driver (600 x 600 colour change)

See our LED lighting projects ›

Technical specifications

Models, watts, lumens and dimensions

Product	Size	Driver	Lumen output	Power	Efficacy	CCT
PS-PANEL 66-40	595 x 595 mm	Fixed output	2,800 / 3,500 lm	25 / 28 W	125 lm/W	4000K
PS-PANEL 66-CC	595 x 595 mm	Fixed output	2,800 / 3,500 lm	25 / 28 W	125 lm/W	3000K to 6000K
PS-PANEL 66-DCC	595 x 595 mm	Digital dimmable	2,800 / 3,500 lm	25 / 28 W	125 lm/W	3000K to 6000K
PS-PANEL 612-CC	1195 x 595 mm	Fixed output	4,000 / 5,000 lm	41 / 43 W	116 lm/W	3000K to 6000K
