PS-MAST

PS-MAST modular high mast LED floodlight

PS-MAST is a modular high mast floodlight for ports, rail yards, large car parks, stadiums and road junctions. One, two or three LED modules give 500, 750, 1000 or 1500 W, with a remote driver and a wide choice of symmetric, asymmetric and road optics.

500, 750, 1000 or 1500 W from stacked modules
Up to 255,000 lm at 170 lm/W
Optics from 20° to 90°, asymmetric and road
IP66 and IK08, die-cast aluminium
10 kV surge protection, 180 to 528 V
Laser sight aiming device (option)

170 lm/W

Efficacy

Modular

1 to 3 modules

Waterproof

5 Years

Warranty

Features

Made for ports and stadiums

Container terminals, freight yards, motorway junctions and sports grounds need high power light from tall masts. Choose the optic for the area, aim each fitting with the optional laser sight, and house the drivers in a separate electrical cabinet.

Modular design

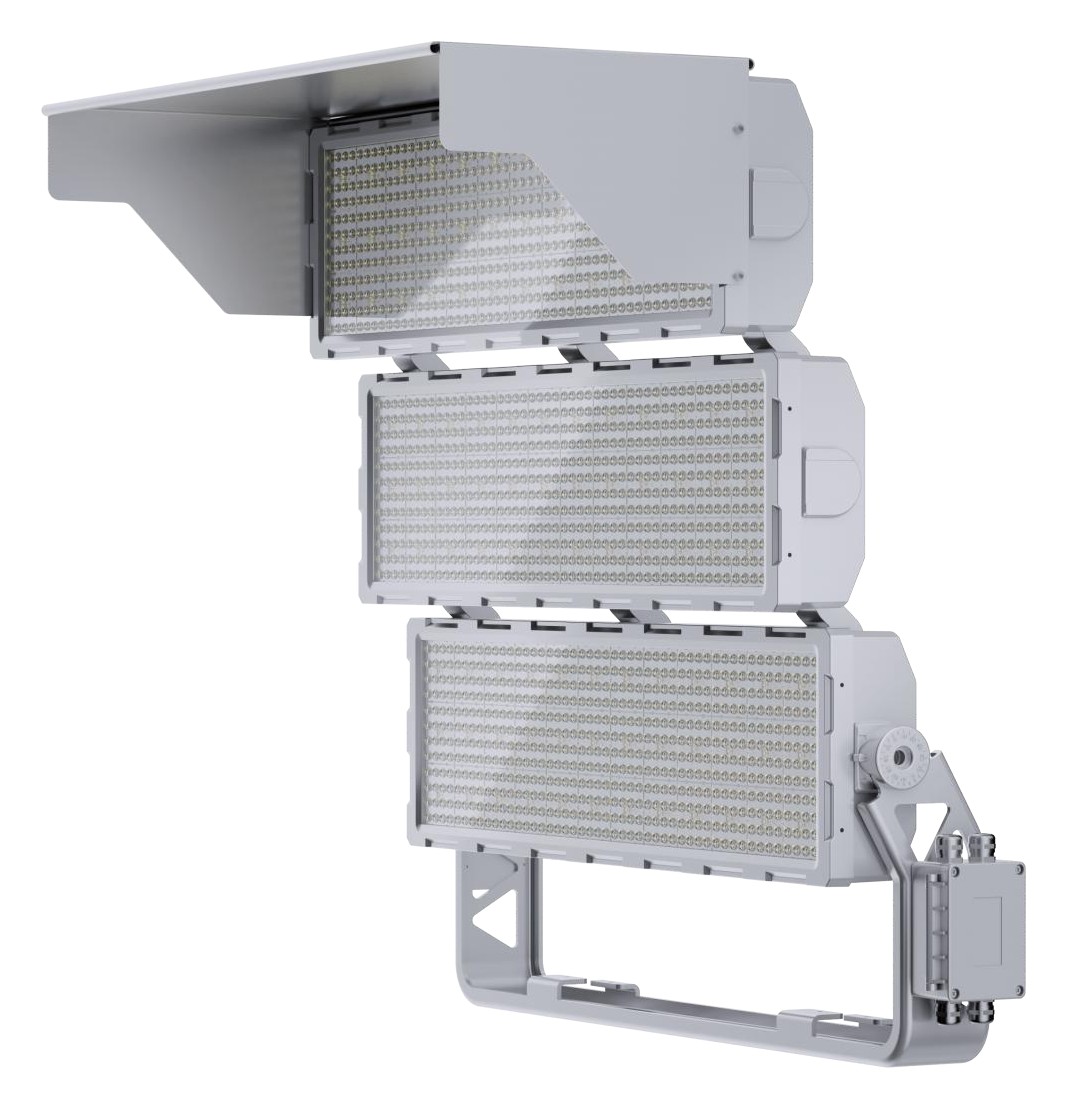

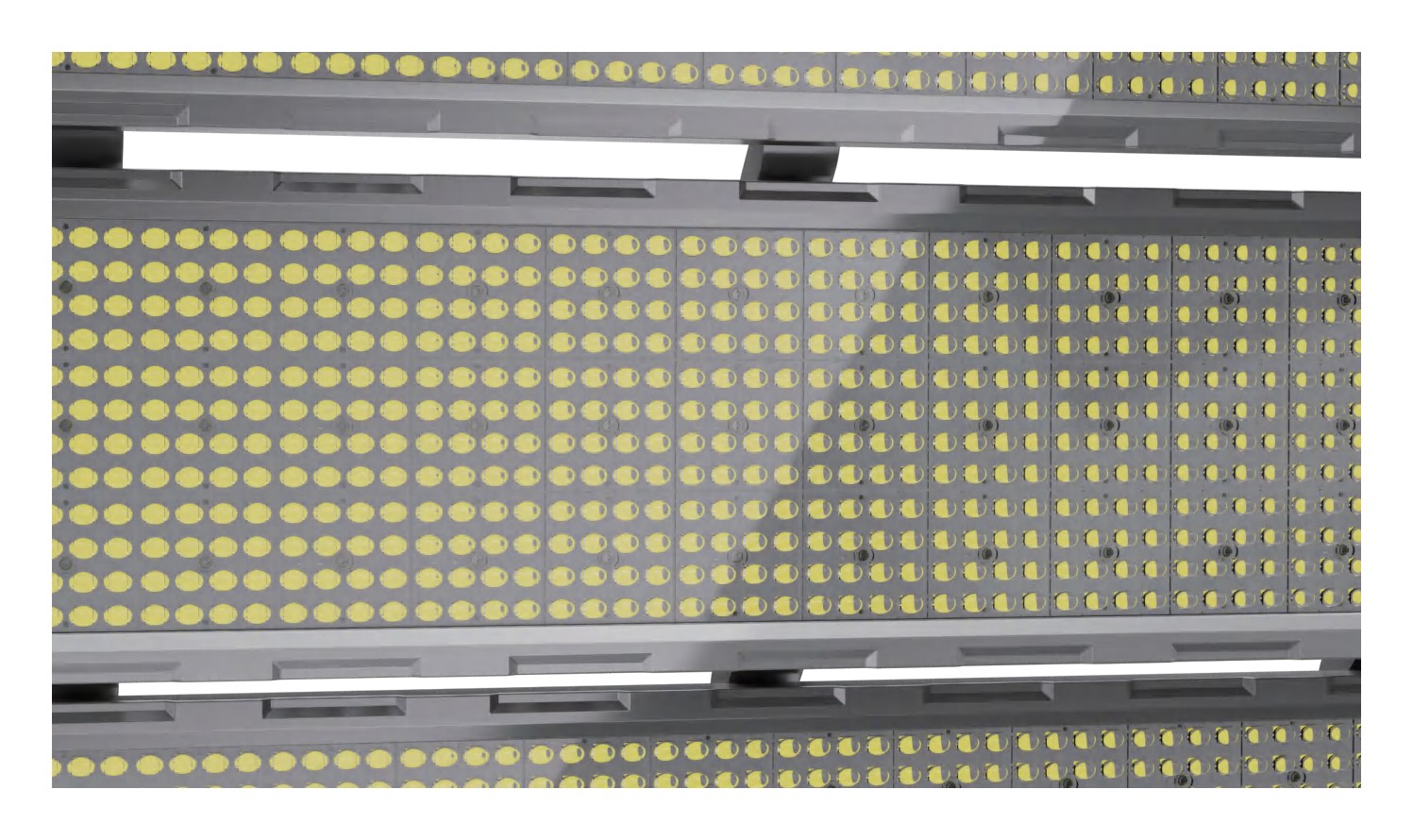

One, two or three LED modules build 500, 750, 1000 or 1500 W fittings in one family.

Wide optic choice

20, 30, 45 and 90°, 100 x 60°, road optics and asymmetric P30 to P50W.

Precise aiming

Optional laser sight aiming device with a range of up to 1000 m for accurate set up at height.

170 lm/W

Up to 255,000 lumens from one 1500 W fitting.

All weather

IP66 and IK08 rated for -40°C to +45°C, with 10 kV surge protection.

Dimming

DALI-2, D4i, DMX or 0/1-10V dimming from the remote driver.

Specification

Key specification

Input voltage	180 to 528 V AC, 50/60 Hz
Power	500 / 750 / 1000 / 1500 W
Luminous flux	85,000 / 127,500 / 170,000 / 255,000 lm
Efficacy	170 lm/W
Driver	Remote driver box, power factor >0.95
CRI / MacAdam	Ra >70 or >80 / ≤5
Colour temperature	3000K to 6500K (5 options)
Optics	20, 30, 45, 90°; 100 x 60°; T2M; T3M-B; P30; P45; P50; P50W
Surge protection	10 kV DM / 10 kV CM
IP / IK rating	IP66 / IK08
Operating temperature	-40°C to +45°C
Lifetime	L70B10 >108,000 h (TM-21)
Housing	Die-cast aluminium, RAL9006; PC/PMMA optic
Dimming	DALI-2, D4i, DMX, 0/1-10V
Cable	3 x 1.0 mm²
Mounting	Fixed bracket
Weight	12.5 to 27.5 kg, fitting only
Warranty	5 years

Applications

Where it is used

Ports and container terminals
Rail and freight yards
Stadiums and sports grounds
Road junctions and large car parks

Options and accessories

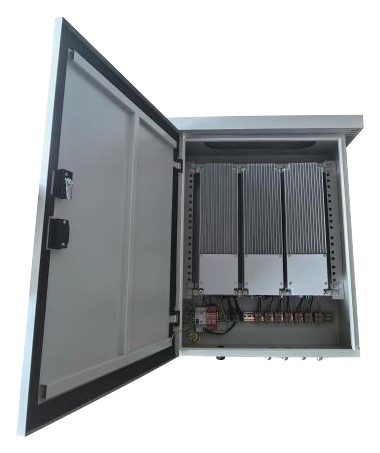

Electrical cabinet for remote drivers
Laser sight aiming device, up to 1000 m
Choice of 11 optics

Planning a pitch or court? See LED sports lighting, 5-a-side pitch lighting, tennis court lighting and padel court lighting.

See our LED lighting projects ›

Technical specifications

Models, watts, lumens and dimensions

Product	Power	Lumen output	Efficacy	Modules	Dimensions L x W x H	Weight
PS-MAST 500	500 W	85,000 lm	170 lm/W	1	723 x 131 x 335 mm	12.5 kg
PS-MAST 750	750 W	127,500 lm	170 lm/W	2	723 x 176 x 536 mm	19.9 kg
PS-MAST 1000	1000 W	170,000 lm	170 lm/W	2	723 x 176 x 536 mm	19.6 kg
PS-MAST 1500	1500 W	255,000 lm	170 lm/W	3	723 x 221 x 737 mm	27.5 kg

Specifications subject to change without notice. Source: PS-MAST spec sheet, October 2026.
