PS-CURVE

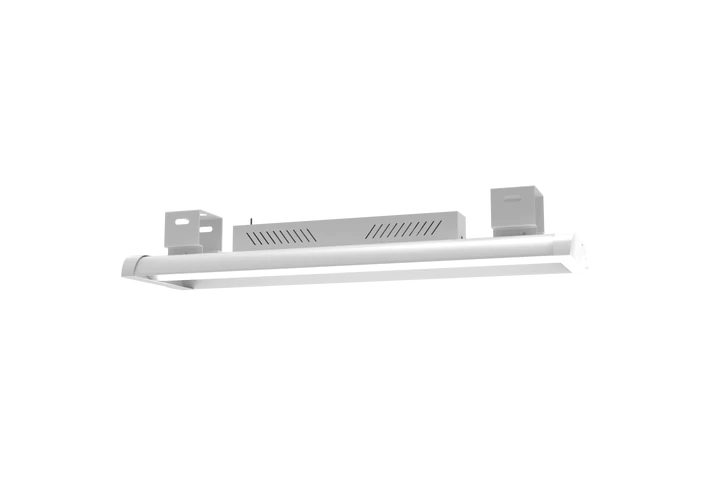

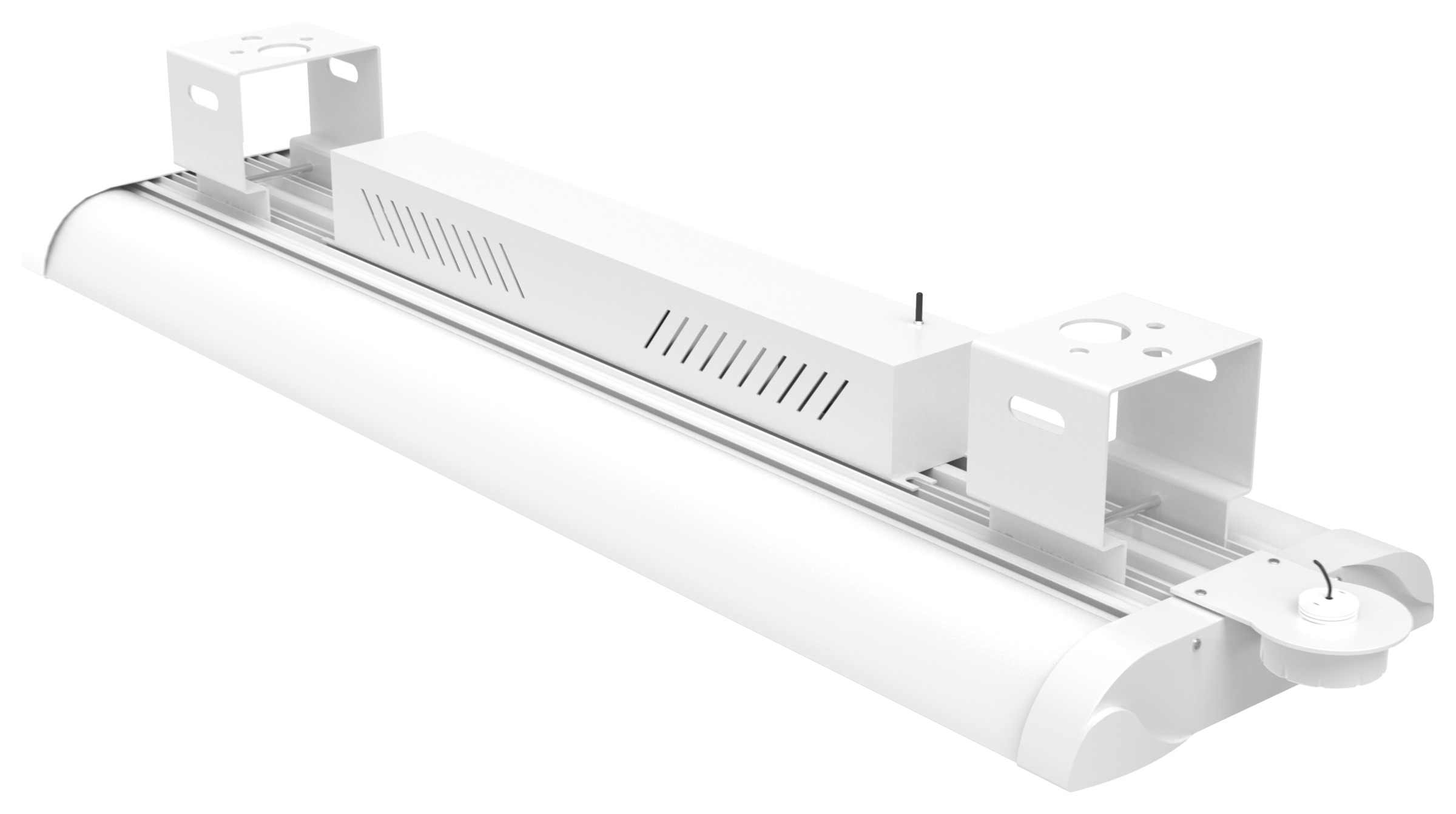

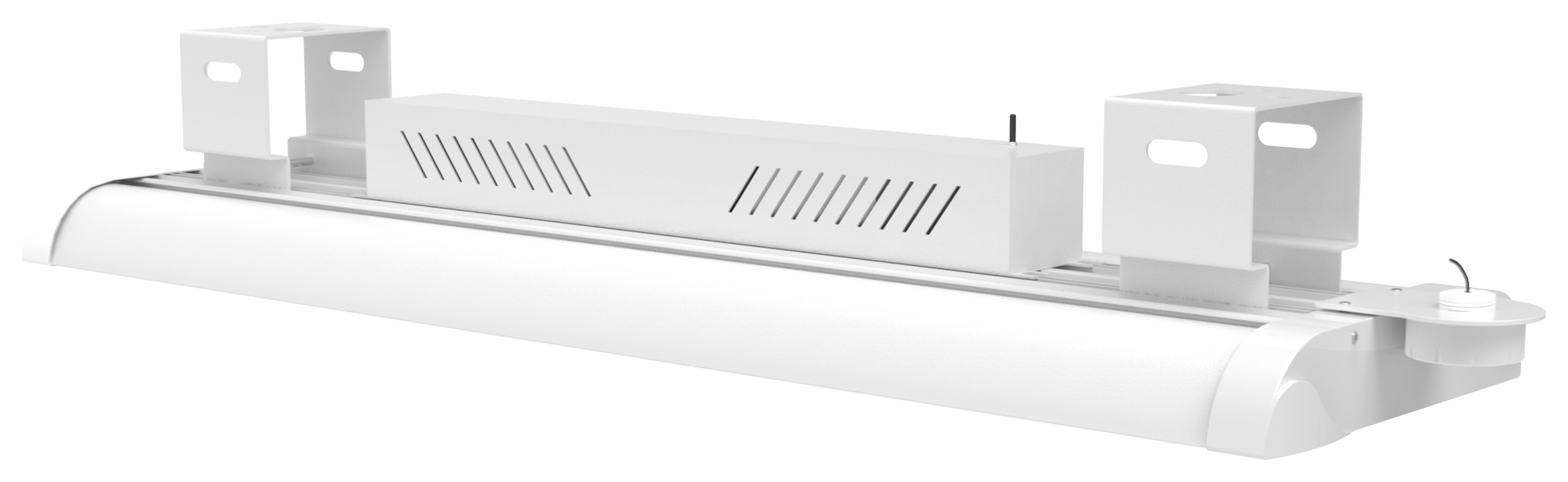

PS-CURVE linear LED high bay with aisle optics

PS-CURVE is a durable linear high bay with a choice of lenses for racking aisles and production halls. Its aisle and wide optics put strong linear light onto the floor between racks rather than onto the sides.

100, 150, 200 and 240 W
Up to 43,200 lm
Optics 30 x 90°, 60 x 110°, 90 x 110°
Optional motion and daylight sensor
Extruded aluminium, silver finish

3 optics

Aisle to wide

Optional

Sensors

5 Years

Warranty

LED high bay installation: how a project runs ›

Features

Made for aisles and halls

Choose the 30 x 90° optic for narrow racking aisles, 60 x 110° for logistics floors or 90 x 110° for open workshops. Light goes where people work instead of onto the top of the racking.

Three optics

30 x 90° for aisles, 60 x 110° for logistics and 90 x 110° for open workshops.

Sensor options

Optional motion sensor and daylight sensor for presence and daylight dimming.

Controls

1-10V or DALI dimming.

Extruded body

Extruded 6063 aluminium housing, powder coated silver, with a polycarbonate lens.

High output

Up to 43,200 lumens at 240 W.

Driver

Constant current driver for 100 to 277 V supplies.

Specification

Key specification

Input voltage	100 to 277 V AC
Power	100 / 150 / 200 / 240 W
Luminous flux	18,000 to 43,200 lm
LED	SMD2835
CRI	Ra >70
Colour temperature	2700K to 6500K
Optics	30 x 90°, 60 x 110°, 90 x 110°
Controls	1-10V, DALI
Operating temperature	-30°C to +50°C
Housing	Extruded 6063 aluminium, powder coated silver
Lens	Polycarbonate
Warranty	5 years

Applications

Where it is used

Racking aisles
Logistics floors
Workshops and production halls
Distribution centres

Options and accessories

Motion sensor
Daylight sensor

See our logistics and warehouse projects ›

Technical specifications

Models, watts, lumens and dimensions

Product	Power	Lumen output	Dimensions L x W x H
PS-CURVE 100	100 W	18,000 lm	613 x 169 x 98 mm
PS-CURVE 150	150 W	27,000 lm	1185 x 169 x 98 mm
PS-CURVE 200	200 W	36,000 lm	1185 x 169 x 98 mm
PS-CURVE 240	240 W	43,200 lm	1185 x 169 x 98 mm

Specifications subject to change without notice. Source: PS-CURVE spec sheet, October 2026.
