PS-COURT-LINEAR linear LED tennis court light

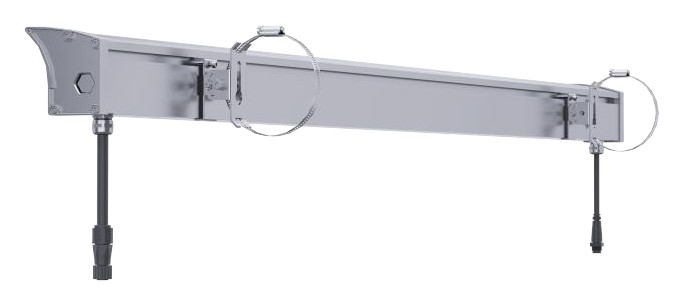

PS-COURT-LINEAR is a 1516 mm linear tennis court light with a P70 asymmetric optic. Mounted along the side of the court rather than on tall poles, it gives soft, even light with low glare and no back light, and one optic suits every court.

45, 60 or 75 W per fitting
Up to 11,250 lm at 150 lm/W
P70 asymmetric linear optic
IP65 and IK08, aluminium housing
Plug-in input and link cables
Low mounting, no tall poles needed

150 lm/W

Efficacy

Asymmetric

Waterproof

5 Years

Warranty

Features

Made for tennis clubs

Club, school and park tennis courts need uniform light across the playing area without glare for players or neighbours. The P70 linear optic lights the court from the side, so fittings mount lower and maintenance is easier.

P70 optic

Linear asymmetric optic with a reflecting structure for even lux across the court and no back light.

Low glare

Soft light from a long emitting surface, more comfortable for players than point floodlights.

One optic

The same P70 optic suits all tennis courts, so there is no extra stock to hold.

150 lm/W

Up to 11,250 lumens from the 75 W fitting.

Easy install

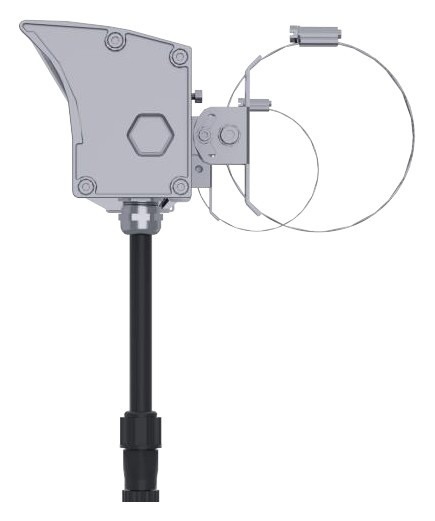

Input and link cables with plug-in male and female connectors. Surface mounted, no tall poles.

Robust

IP65 and IK08 aluminium 6063 housing in RAL9006 grey, for -20°C to +45°C.

Specification

Key specification

Input voltage	220 to 240 V AC, 50/60 Hz
Power	45 / 60 / 75 W
Luminous flux	6,750 / 9,000 / 11,250 lm
Efficacy	150 lm/W
Power factor / THD	>0.95 / <15%
CRI / MacAdam	Ra >70 / ≤5
Colour temperature	3000K to 6500K (5 options)
Optic	P70 asymmetric
Surge protection	1 kV DM / 2 kV CM (6 kV with extra SPD)
IP / IK rating	IP65 / IK08
Operating temperature	-20°C to +45°C
Lifetime	L70B10 >102,000 h (TM-21)
Housing	Aluminium 6063, RAL9006; PC optic
Dimensions	1516 x 121 x 101 mm
Cables	3 x 2.5 mm², 0.2 m, male and female connectors
Mounting	Surface mounting
Warranty	5 years

Applications

Where it is used

Tennis clubs
School and park courts
Multi-use games areas
Club refurbishments

Options and accessories

Input cable with female connector
Input cable with male connector
Link cable, male to female
Additional 6 kV surge protector

Planning a pitch or court? See LED sports lighting, 5-a-side pitch lighting, tennis court lighting and padel court lighting.

See our 5-a-side and sports projects ›

Technical specifications

Models, watts, lumens and dimensions

Product	Power	Lumen output	Efficacy	Optic	Dimensions L x W x H
PS-COURT-LINEAR 45	45 W	6,750 lm	150 lm/W	P70	1516 x 121 x 101 mm
PS-COURT-LINEAR 60	60 W	9,000 lm	150 lm/W	P70	1516 x 121 x 101 mm
PS-COURT-LINEAR 75	75 W	11,250 lm	150 lm/W	P70	1516 x 121 x 101 mm
